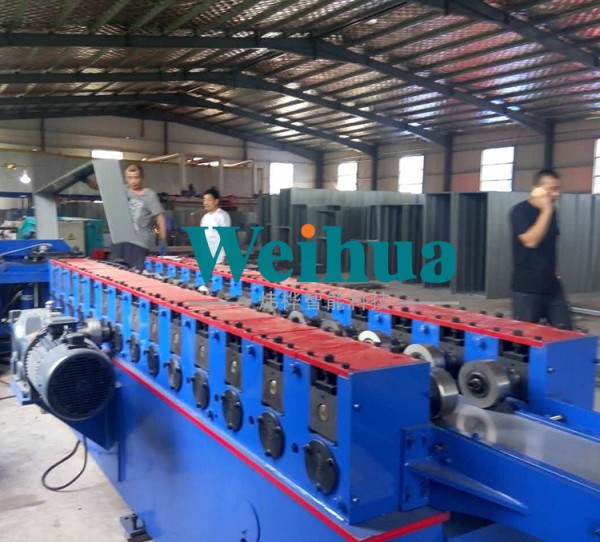

pz30自动生产设备，pz30自动生产线
pz30 automatic production equipment, pz30 automatic production line
pz30配电箱广泛应用于高层建筑、宾馆、住宅、车站、港口 、机场、医院、影剧院、大型商业网点和工矿企业等。它是 种安装终端电器的装置，它的主要特点是采用电器尺寸标准化、安装轨道化、外形艺术化、 使用安全化，在国内外已被广泛应用。在我国pz30的生产还是主要依靠剪板机和折弯机人工操作，造成尺寸不准、效率很低，外形效果差，因此在市场占有率不高！而且生产需要大量人工成本，生产过程中造成大量的材料浪费，制约了企业的发展。
pz30 distribution boxes are widely used in high-rise buildings, hotels, residential buildings, stations, ports, airports, hospitals, theatres, large commercial outlets and industrial and mining enterprises. It is a device for installing terminal electrical appliances. Its main characteristics are standardization of electrical size, installation of rail, artistic appearance and safe use, and has been widely used at home and abroad. In our country, the production of pz30 mainly depends on the manual operation of shearing machine and bending machine, resulting in inaccurate size, low efficiency and poor appearance effect, so the market share is not high! And production requires a large number of labor costs, resulting in a large number of waste of materials in the production process, restricting the development of enterprises.
我公司研发的PZ30自动生产线是非标定制设备，具有生产速度快 小时可以生产600个，成型效果好，整条生产线 人足够，采用特殊工艺无废料产生。将会给企业节省大量人工成本以及材料，带来可观的效益！
The PZ30 automatic production line developed by our company is non-standard custom equipment, with a production speed of one hour can produce 600, the forming effect is good, the whole production line one person is enough, the use of special process no waste generation. Will give the enterprise to save a lot of labor costs and materials, bring considerable benefits!
pz30成型设备主要组成
Main components of pz30 forming equipment

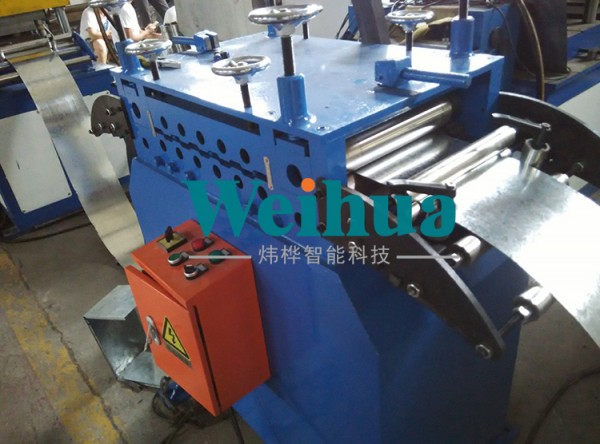

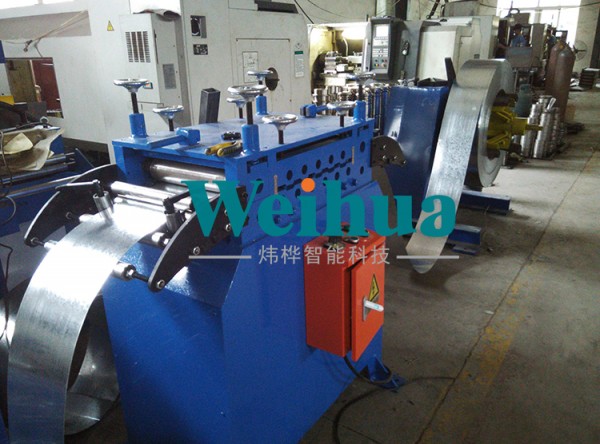

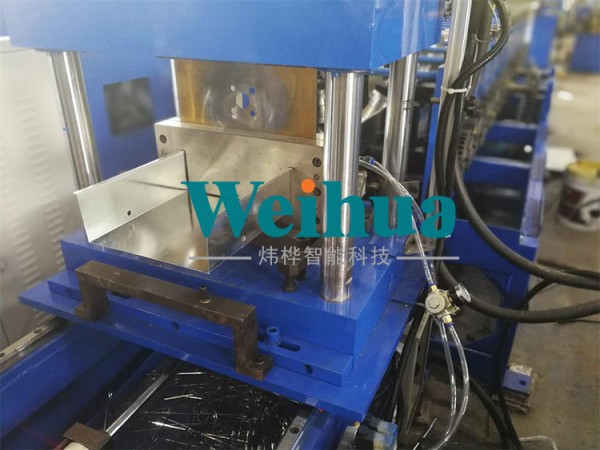

自动放料机、校平、送料、连续冲孔、成型、定尺切断、收料台、电器控制柜等部件组成。
Automatic discharge machine, leveling, feeding, continuous punching, molding, fixed length cutting, receiving table, electrical control cabinet and other components.
pz30成型设备简要参数
Brief parameters of pz30 forming equipment
原产 地：山东潍坊
Place of origin: Shandong Weifang
包装运输：简易包装
packaging transportation: simple packaging
重 量：27T
weight: 27T
用料厚度：0-4.2mm（根据客户要求）
material thickness: 0-4.2mm (according to customer requirements)
加工速率：0-17m
processing rate: 0 to 17m
切断方式：液压切断
cutting mode: hydraulic cutting
液压功率：7.5kw
hydraulic power: 7.5kw
电压参数：380V，50Hz, 3相
voltage parameter: 380V, 50Hz, 3 phase
加工占地空间： 23×2×2（长×宽×高）米
processing covers space: 23 × 2 × 2 (length × width × height) meter
设备总功率：32.5kw
equipment total power: 32.5kw
切断公差限度：≤ ±0.45mm（长≤3500mm）
cut off tolerance limit: ≤ ±0.45mm (length ≤ 3500mm)
电机：西门子
motor: Siemens
送料机：日本安川
feeder: Japan Yasukawa
传感器：德国倍加福
sensor: Germany Baijiafu
品质决定了品牌的高度，所以我们始终坚持用科技创造价值的理念，在生产上炜桦系列冷弯设备上，不断结合前沿工艺，改进生产技术，使新产品质量与 水平接轨，保证产品的 稳定、可靠性、实用性。 炜桦本着“锐意进取，精益求精，信守承诺，探索求真”的理念，使双方互赢互助的合作更进 步。
Quality determines the height of the brand, so we always adhere to the concept of using science and technology to create value, in the production of Wei Hua series of cold bending equipment, constantly combined with cutting-edge technology, improve production technology, so that the quality of new products in line with the world level, to ensure the stability, reliability and practicability of the products. Wei Hua in line with the "forge ahead, excellence, keep the promise, explore the truth" concept, so that the two sides win and help each other to further the cooperation.
