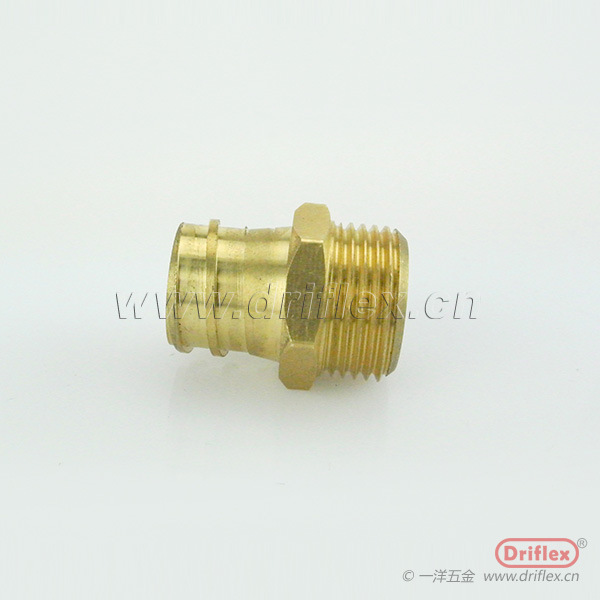

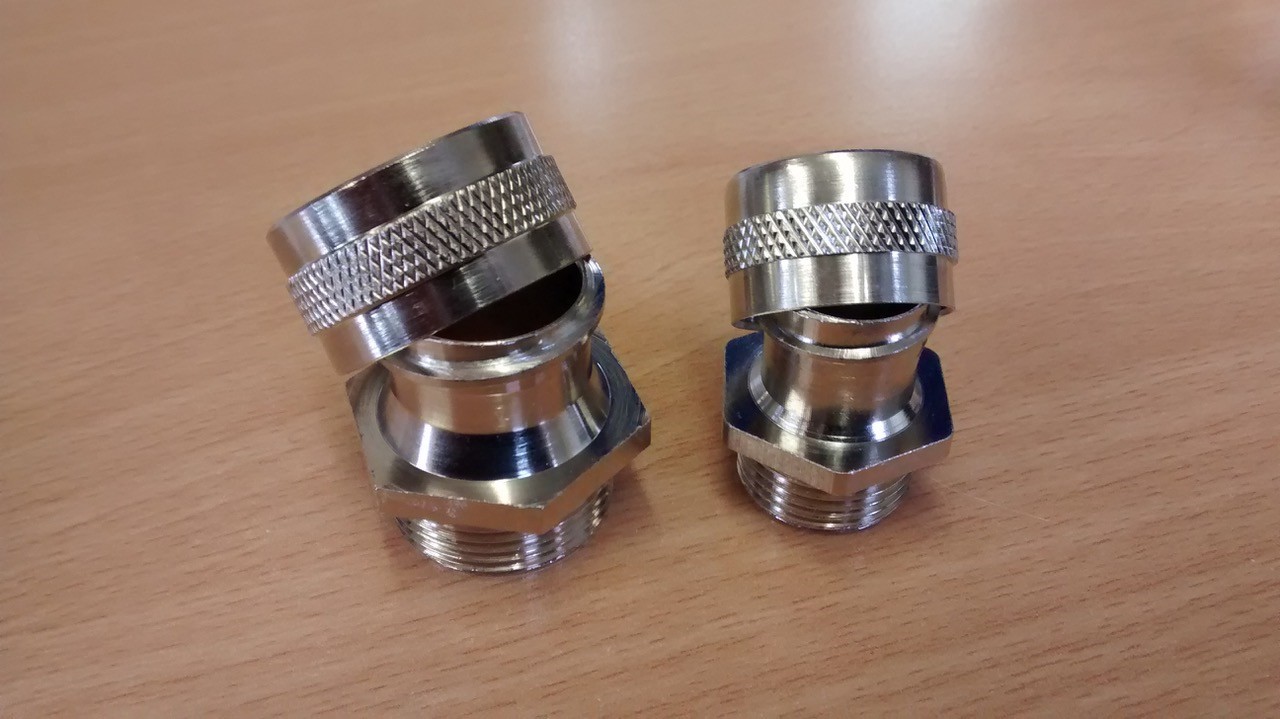

| 波浪软管连接器（英制/G) | Fixed&Swivel Conduit Connector | |||||
| 材 质： | 铁、铜、不锈钢 | |||||
| 防护等 ： | IP54 | |||||
| 镀 层： | 锌、铬、镍 | |||||
| Materials: | Iron 、Brass、Stainless Steel | |||||
| Protection Rating: | IP54 | |||||
| Plating: | Zinc、Chrome、Nickel | |||||
| 型号 Part No. | 螺纹标准 | 适配软管(") | 适配软管(mm) | 小头螺纹外径 | ||
| 铁 Iron | 铜 Brass | 不锈钢SS | A(mm) | |||
| VJCG-I09 | VJCG-B09 | VJCG-S09 | G3/8" | 3/8" | Ф12 | 16.7 |
| VJCG-I10 | VJCG-B10 | VJCG-S10 | G1/2" | 3/8" | Ф12 | 21.0 |
| VJCG-I11 | VJCG-B11 | VJCG-S11 | G1/2" | 1/2" | Ф16 | 21.0 |
| VJCG-I12 | VJCG-B12 | VJCG-S12 | G3/4" | 3/4" | Ф20 | 26.4 |
| VJCG-I13 | VJCG-B13 | VJCG-S13 | G1" | 1" | Ф25 | 33.3 |
| VJCG-I14 | VJCG-B14 | VJCG-S14 | G1-1/4" | 1-1/4" | Ф32 | 41.9 |
| VJCG-I15 | VJCG-B15 | VJCG-S15 | G1-1/2" | 1-1/2" | Ф38 | 47.8 |
| VJCG-I16 | VJCG-B16 | VJCG-S16 | G2" | 2" | Ф51 | 59.6 |
