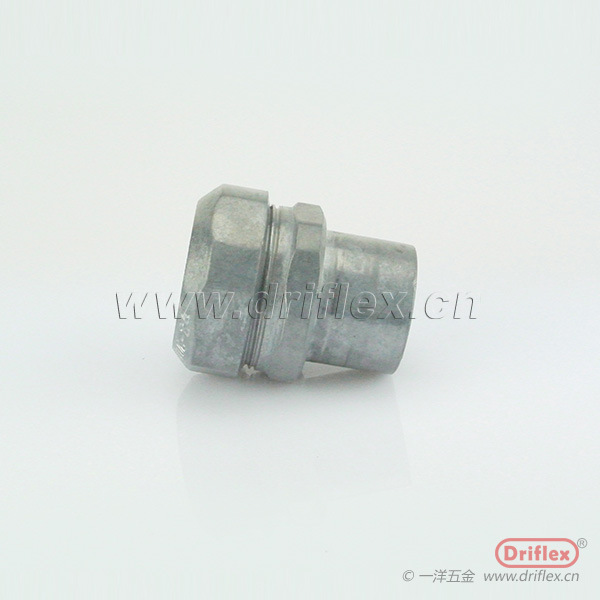

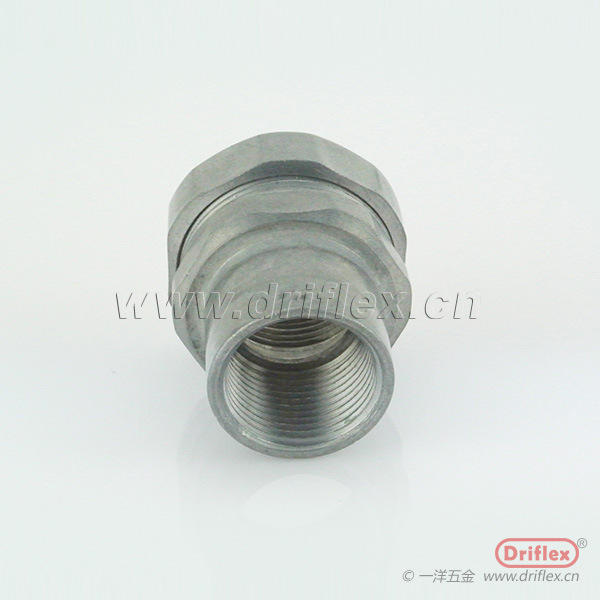

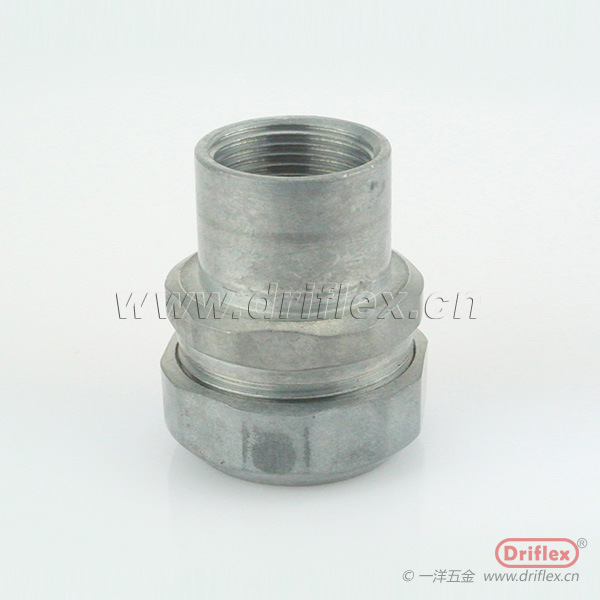

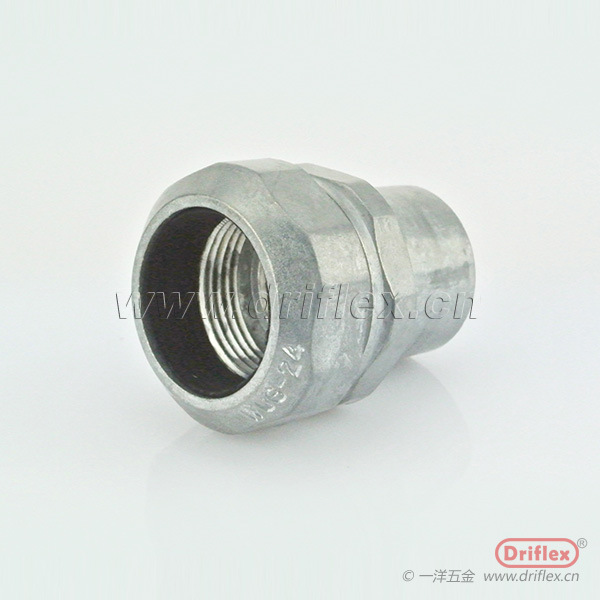

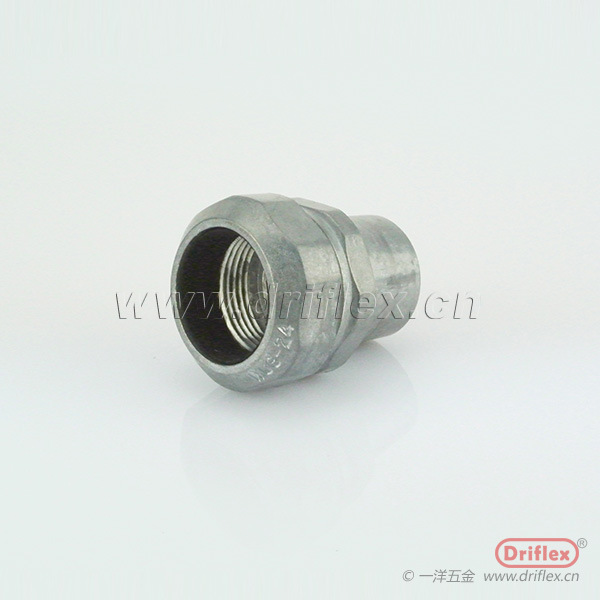

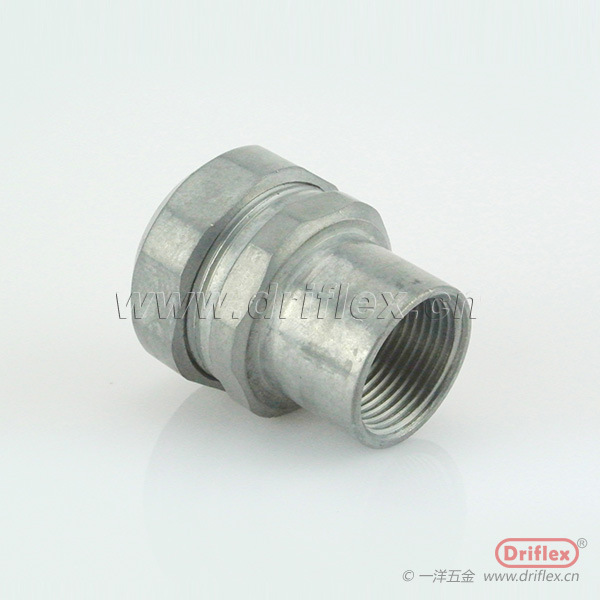

点击图片查看原图
| 型号 |
可挠金属套管型号 |
可挠金属套管规格 |
L1 |
L2 |
L3 mm |
ΦA mm |
ΦB mm |
ΦD mm |
管螺纹 ″ |
接钢管规格 |
| WUG-17 | LV | 17# | 19.0 | 24.5 | 27 | 37.0 | 34.0 | 25.3 | G1/2 | 15 |
| WUG-24 | 24# | 22.0 | 24.5 | 30 | 46.0 | 42.8 | 31.3 | G3/4 | 20 | |
| WUG-30 | 30# | 25.0 | 29.0 | 33 | 54.0 | 50.0 | 38.4 | G1 | 25 | |
| WUG-38 | 38# | 28.0 | 33.0 | 37 | 64.0 | 60.0 | 47.2 | G11/4 | 32 | |
| WUG-50 | 50# | 28.0 | 34.5 | 38 | 78.0 | 73.5 | 53.5 | G11/2 | 40 | |
| WUG-63 | 63# | 34.0 | 37.0 | 44 | 92.0 | 90.0 | 66.0 | G2 | 50 | |
| WUG-76 | 76# | 36.0 | 42.0 | 48 | 108.0 | 104.0 | 81.0 | G21/2 | 70 | |
| WUG-83 | 83# | 40.0 | 42.0 | 49 | 121.7 | 115.8 | 95.8 | G3 | 80 | |
| WUG-101 | 101# | 32.0 | 52.0 | 57 | 145.0 | 150.0 | 110.4 | G4 | 100 |
