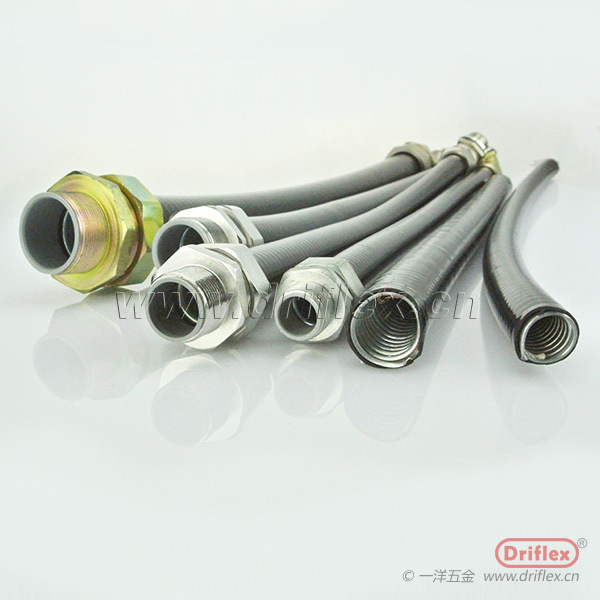

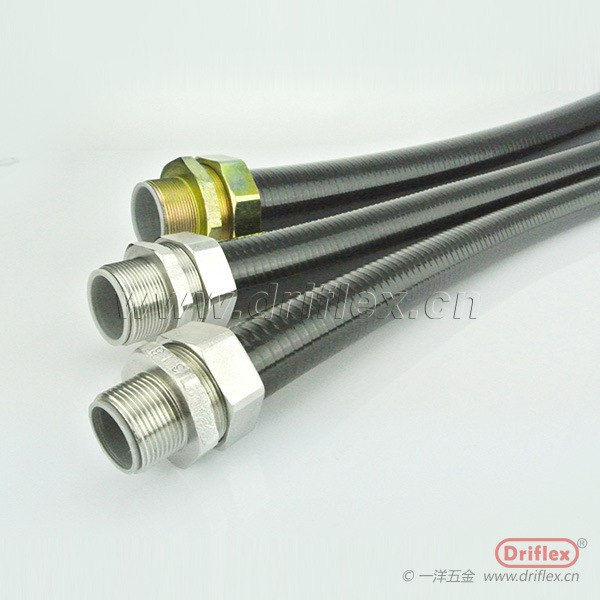

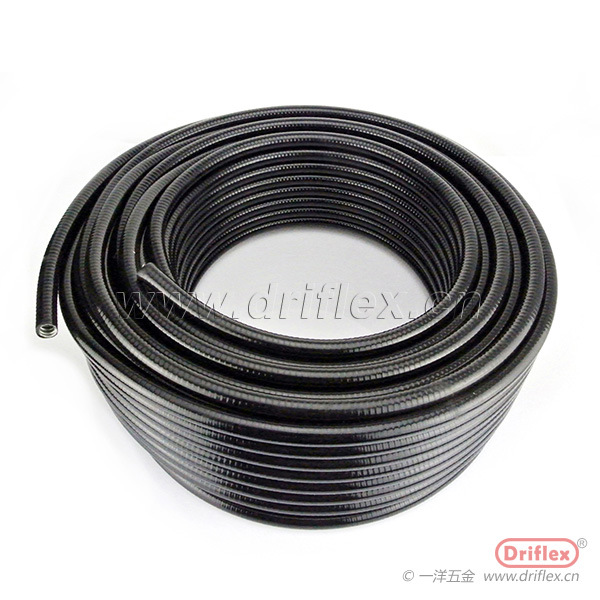

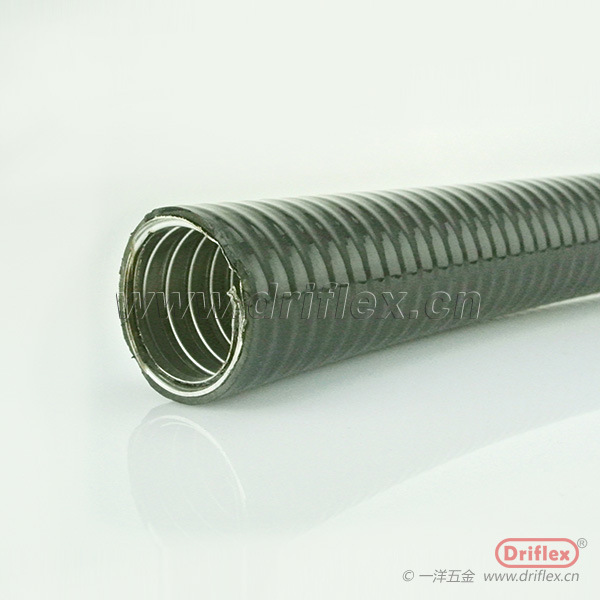

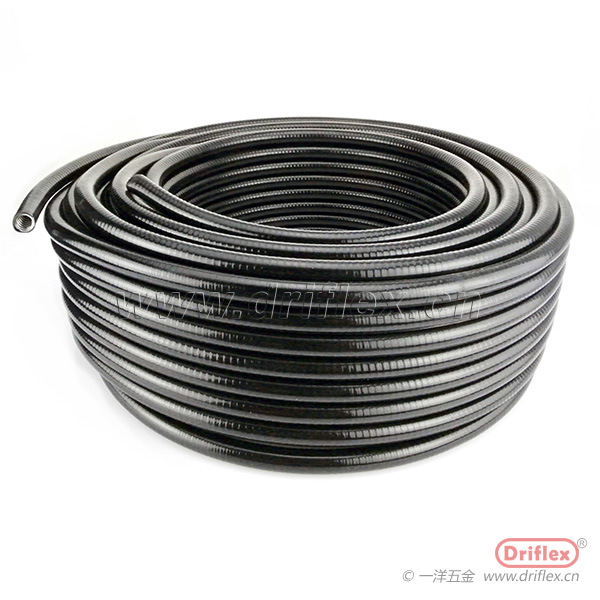

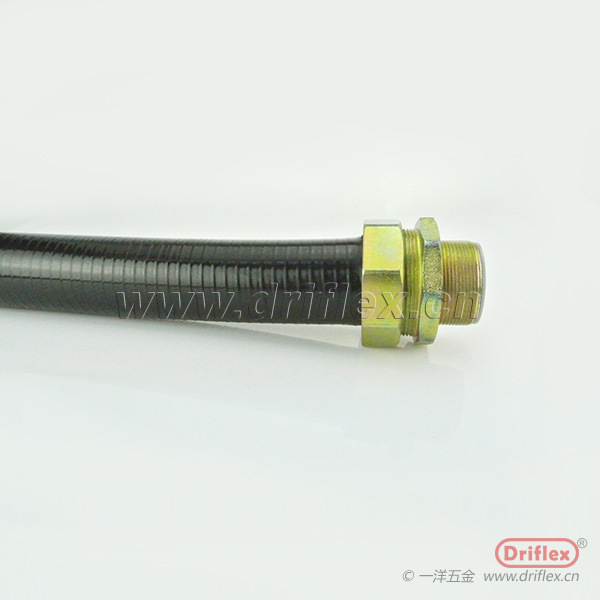

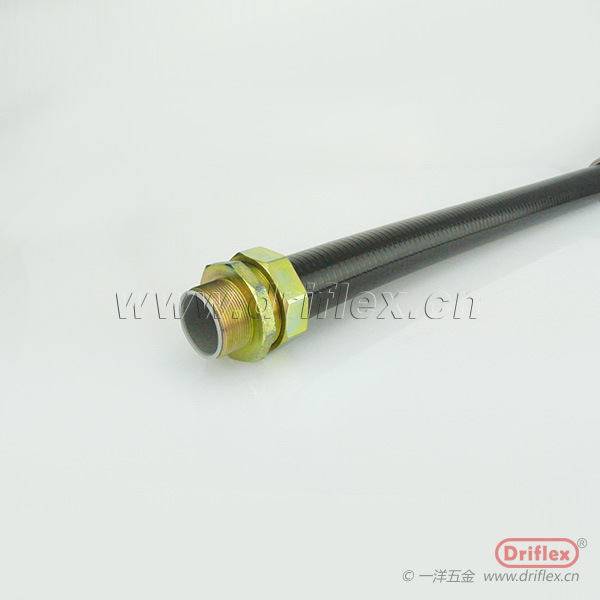

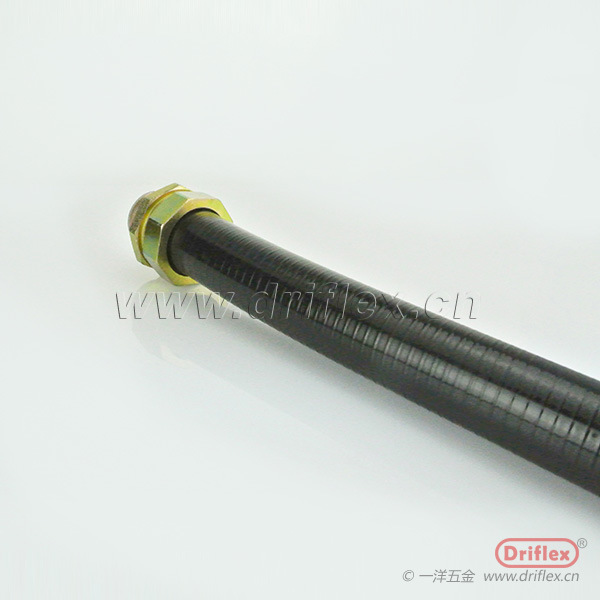

| 平包塑单勾镀锌金属软管 | Liquid tight Squarelocked Galvanized Steel Flexible Conduit | |||||
| 材 质: | 镀锌钢带 + 棉线+ PVC | |||||
| PVC 包塑： | 黑、灰、黄 | |||||
| 防护等 ： | IP67 | |||||
| 耐温范围： | -30℃ - +120℃ | |||||
| 拉 力： | 1700N | |||||
| Materials: | Galvanized Steel + yarn + PVC | |||||
| PVC Coated: | Black, Grey, orange. | |||||
| Protection Rating: | IP67 | |||||
| Temperature Range: | -30℃ - +120℃ | |||||
| Tension： | 1700N | |||||
| 型号 Part No. | 规格 | 通径 | 内径(mm) | 外径(mm) | 弯曲半径（mm) | 包装（m/coil) |
| 镀锌钢带（S) | Inch | mm | I.D. | O.D. | Benging Radius | Packing |
| LT-8S | 1/4" | Ф8 | 7.80-8.10 | 12.00-12.30 | 60.0 | 100 |
| LT-9S | 5/16" | Ф10 | 9.60-10.20 | 14.00-14.50 | 60.0 | 50 |
| LT-10S | 3/8" | Ф12 | 12.30-12.80 | 17.50-18.00 | 60.0 | 50 |
| LT-11S | 1/2" | Ф16 | 15.80-16.31 | 20.80-21.30 | 80.0 | 50 |
| LT-12S | 3/4" | Ф20 | 20.83-21.34 | 25.30-26.70 | 100.0 | 50 |
| LT-13S | 1" | Ф25 | 26.44-27.08 | 32.80-33.40 | 150.0 | 50 |
| LT-14S | 1-1/4" | Ф32 | 35.05-35.81 | 41.40-42.20 | 180.0 | 20 |
| LT-15S | 1-1/2" | Ф38 | 40.01-40.64 | 47.40-48.30 | 200.0 | 20 |
| LT-16S | 2" | Ф51 | 51.31-51.94 | 59.40-60.30 | 250.0 | 20 |
| LT-17S | 2-1/2" | Ф64 | 62.99-63.63 | 72.10-73.00 | 300.0 | 10 |
| LT-18S | 3" | Ф75 | 77.98-78.74 | 87.90-88.90 | 450.0 | 10 |
| LT-19S | 4" | Ф100 | 101.60-102.62 | 113.30-114.30 | 600.0 | 10 |
